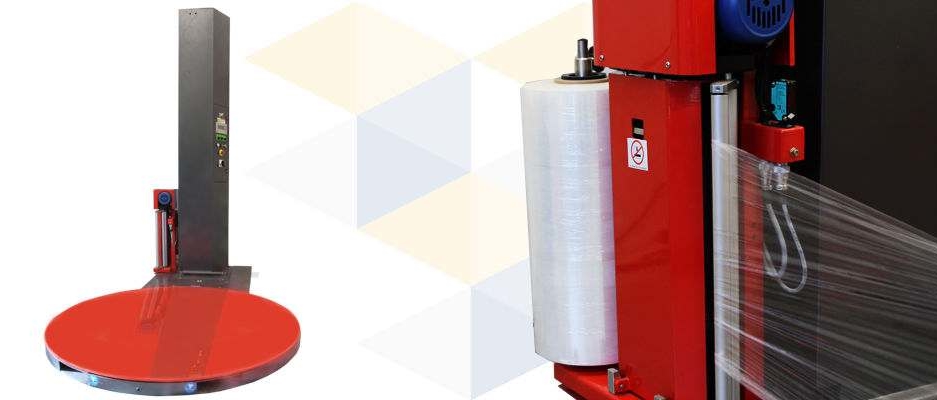

IM Stretch 2 - Pallet wrap machine
The Pallet Wrapper IM Stretch 2 is our best-selling model for automaticly wrapping pallets for transportation or storage. Pallets up to 2,000 kg are no problem for the IM Stretch 2! The machine processes machine film in any desired quality. Optionally, one can choose a 250% pre-installation, which in combination with the Powerstretch film will produce a lot of film-saving.
The turntable has a diameter of 1,500 mm and is frequency controlled. The film carriage is equipped with a photocell for automatically checking pallet height.
The film tension is controlled by means of an adjustable electromagnetic brake. The wrapping program settings are clear and easy to enter through the control panel.
A ramp is required for loading the platform by means of pump trucks (optional accessory).
CE certified. Manufactured according to current machinery guidelines.
TECHNISCHE DATA:
| Machine sizes |
2.590 x 1.500 x 2.480 mm
|
| Machine weigth | 800 kg |
| Turntable diameter | 1.500 mm |
| Max. Weigth | 2.500 kg |
| Max. pallet height | 1.200 x 1.000 mm |
| Max. wrapping heigth | 2.100 mm |
| Speed |
0 - 7 turns./min
|
| Wrapping programs |
3x automatic, 1x manual
|
| Power supply | 230 V / 50 Hz / 1,25 KW |
| Noise level | 75 dB |
| Electromagnetic film break | Yes |
| Frequency controlled | Yes |
| Photocell height measurement | Yes |
| CE-gecertified | Yes |
OPTIES:
- Ramp for hand pallet transport
- Photcell for black film and goods
- Prestretch installation 250%
